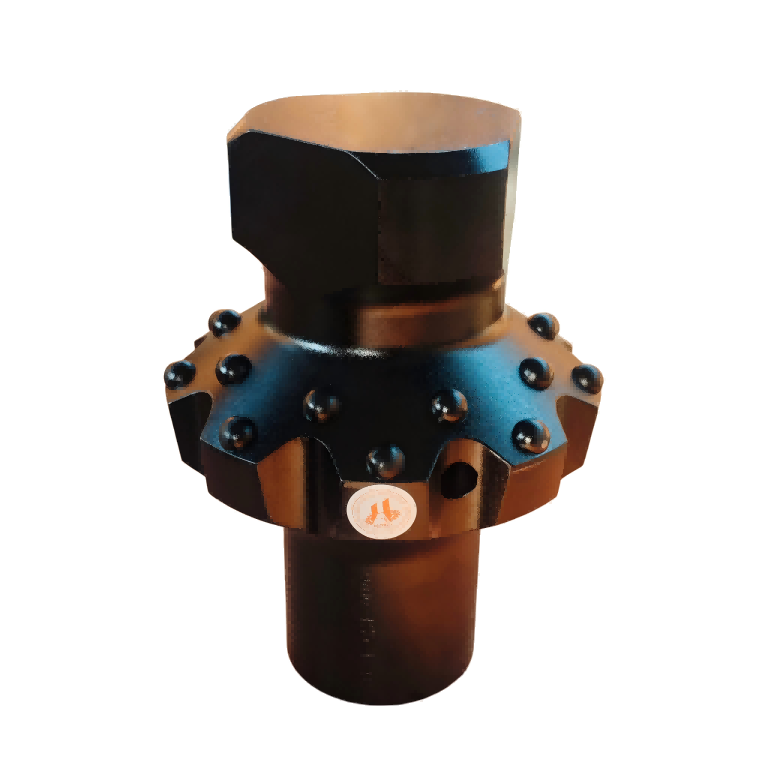

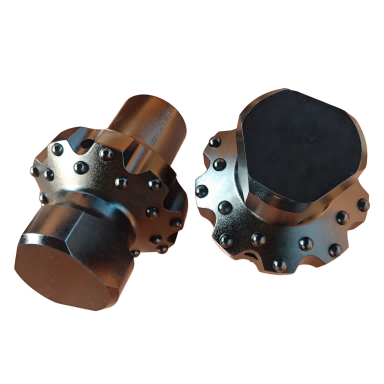

ST58 Thread Reaming Rock Bit One Piece Heavy Duty Rock Reamer Bit

Name: ST58 Thread Reaming Rock Bit One Piece Heavy Duty Rock Reamer Bit
Brand: HLDRILL
Price: 1 USD

Quality ST58 Thread Reaming Rock Bit One Piece Heavy Duty Rock Reamer Bit for sale

Certification : ISO 9001 Certified

Applicable Diameter Range : 137mm to 204mm

Brand Name : HLDRILL

Thread Standard : ST58 industry standard thread

Supply Ability : 3000 PCS Per month

Structure Type : One piece integrated structure

Payment Terms : T/T

Material Standard : Epiroc's mainstream material standards

Delivery Time : 7-15 Days

Rock Breaking Ability : Exceptional

Price : Please Contact Us

Packaging Details : Wooden Boxes , Cardboard Boxes

Steel Body Material : 50R61 high strength steel grade

Abrasion Resistance : High

Place of Origin : CHINA

Carbide Material : ZCC YK05 high hardness tungsten carbide

MOQ : 10PCS

Carbide Button Size : 9*16mm

Contact Now

ST58 Thread Reaming Rock Bit With ZCC YK05 Tungsten Carbide And 50R61 Steel For Heavy Duty Rock Reaming

The ST58 Thread Reaming Rock Bit is a high performance one piece rock reaming tool engineered for precision hole expansion in underground roadway excavation, mining, and rock drilling projects. This integrated ST58 reaming bit features an all in one molded structure that eliminates assembly gaps and delivers superior working stability for harsh rock drilling conditions. It serves as a core auxiliary drilling tool to optimize borehole quality and boost overall drilling productivity.

ST58 Thread Reaming Rock Bit One Piece Heavy Duty Rock Reamer Bit

Product Specifications

Specification	Details
Thread Standard	ST58 industry standard thread for tight compatibility with matched drilling rigs and drill rods
Applicable Diameter Range	137mm to 204mm, covering most conventional roadway and mining borehole reaming requirements
Carbide Material	ZCC YK05 high hardness tungsten carbide with 9*16mm specification, featuring exceptional rock breaking ability and abrasion resistance
Steel Body Material	50R61 high strength steel grade, consistent with Epiroc's mainstream material standards, with excellent impact resistance and structural toughness

Core Advantages

Exceptional Durability Extended Service Life

The whole bit body is forged from high quality 50R61 steel and paired with ZCC YK05 premium carbide buttons. The integrated structure avoids loose parts and structural damage caused by long term high intensity rock impact, significantly upgrading wear resistance and anti impact performance.

Integrated Structure Low Maintenance

Designed as an all in one structure, this ST58 reaming bit requires no pre assembly before use. It can be directly installed and put into operation, simplifying on site procedures and reducing daily maintenance difficulty.

Ultra Stable Operation High Reaming Precision

The optimized integrated structural design effectively suppresses vibration and jitter during high speed hole expansion, maintaining stable operation in complex rock formations and ensuring uniform borehole diameter.

Application Scenarios Working Principle

This ST58 rock reaming bit is widely applicable to roadway excavation, mining rock drilling, tunnel construction and other engineering scenarios. The standard working process involves :

First, use a guide drill bit to drill accurate and straight pilot holes to fix the drilling trajectory
Then, install the ST58 thread reaming rock bit for secondary hole expansion treatment
This two step process quickly enlarges the pilot hole to the target construction diameter

This drilling and reaming process ensures straightness and regularity of the borehole while greatly improving drilling efficiency for batch and large scale rock drilling projects.

Customization Service Support

We support personalized customized ST58 reaming bits according to customers' special engineering needs. Whether adjusting diameter specifications, optimizing carbide configuration, or upgrading structural parameters for special rock formations, we provide one stop customized solutions to meet diverse construction requirements.
